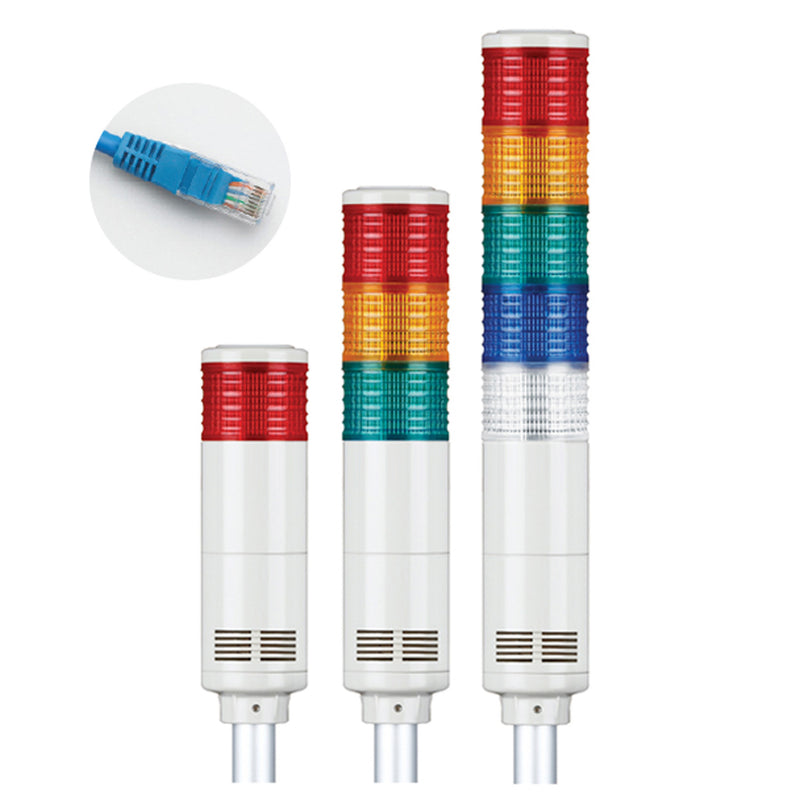

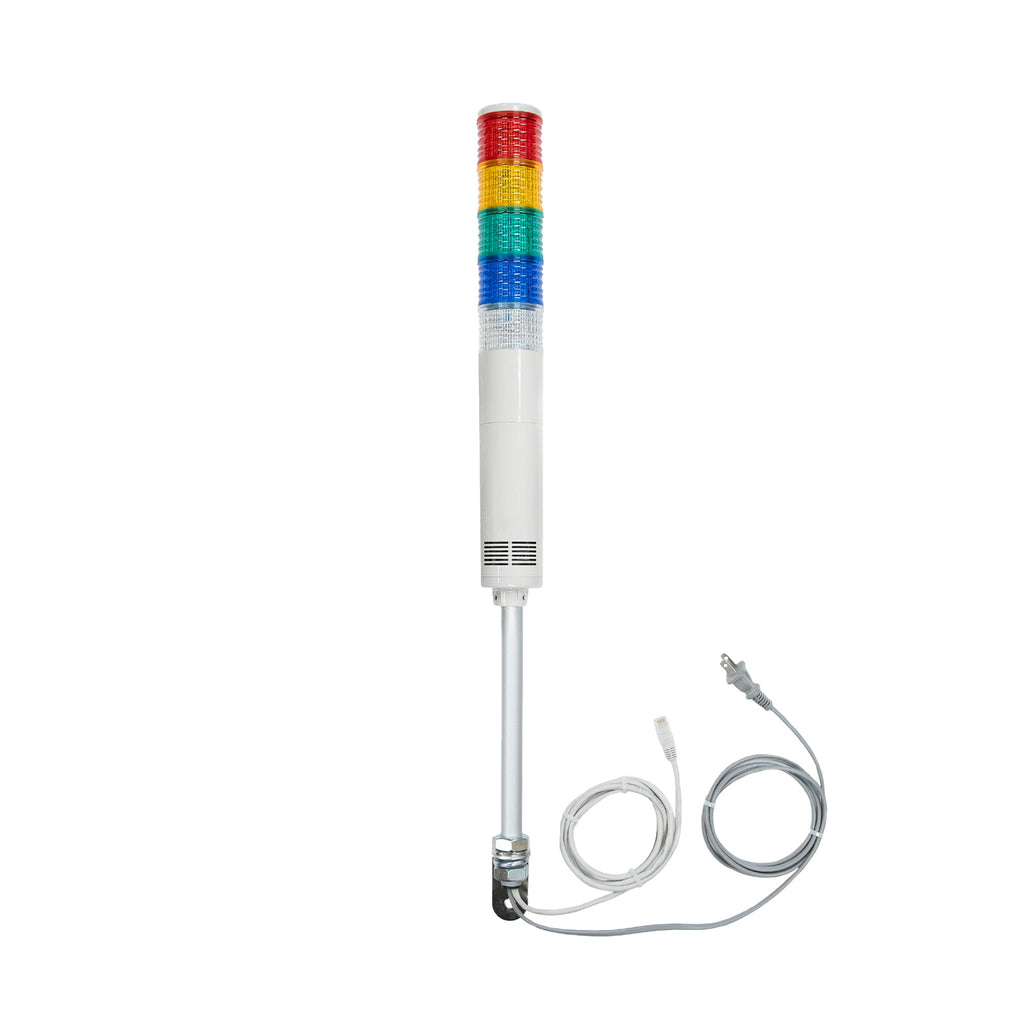

Ethernet LED Tower Light with Integrated Web UI (HMI)

SignaworksSKU: ETN56LB-1
filler
Ships from the domestic United States
Price:
Sale price$375

Description


Features

  • The ETN56L Does NOT communicate over Allen Bradely/Rockwell Ethernet/IP Protocol.
  • LED tower light controlled by TCP/IP Ethernet communication through internet or LAN.
  • Lights have integrated Web GUI that allows the users to control the light from a browser
  • Pre-Wired, Pre-Assembled with 5 foot Ethernet Male RJ45 Cable & 12 inch Power Cable
  • Remote control and monitoring of lights and audible through use of various application programs or web browser.
  • PC setup tool for setting IP, subnet mask and gateway for each piece of equipment.
  • Maximum of 5 LED light colors and Multiple audible alarm sounds
  • Volume (Buzzer): Max. 90dB at 1 Meter, (Melody) Max 85 dB at 1 Meter
  • Protection Class: IP23

Downloads

Accessories & Options

  • Direct mount versions, ST56EL-ETNB and ST56EL-ETNS come with bolts and no pole.
  • Sound options for the ST56MEL-ETNS and ST56EL-ETNS: Warning Sound (WS), Melody (WM), Alarm (WM) 4 tones each or Voice Signal.
  • Bases: Default Right angle (NT-500), Flange (NT-550) optional, Wall Mount (NT-560) optional
  • Ethernet_TowerLight_Accessories


PDF Icon  Download Spec Sheet

Tones

(WM) - Warning Melody - (Standard Product)

Channels      Melodies            Tones
Ch. 1  Sweet Home
Ch. 2 For Elise
Ch. 3 Cuckoo's Waltz
Ch. 4 Piano Sonata
Ch. 5 Turkish March

(WS) - Warning Sounds (Special Order, non-stock item)

Channels      Melodies            Tones
Ch. 1  Fire.A-ANG
Ch. 2 Abandon Alarm
Ch. 3 Machinery Fault
Ch. 4 High Expansion
Ch. 5 7 Short PI. / 1 Long

(WA) - Warning Alarm  (Special Order, non-stock item)

Channels      Melodies            Tones
Ch. 1  Beep. intermittent
Ch. 2 Door Chime
Ch. 3 Phone Ring
Ch. 4 PI.PI.PI. Short
Ch. 5 Tripping Beat
